In multi-well filtration, preventing cross-contamination between adjacent wells is critical for maintaining data quality and assay reliability, especially when processing large numbers of samples in parallel.
Contamination-Preventive Silicone Sheet on the bottom securely fixes both filtration mesh plate and reservoir plate to prevent cross-contamination among wells.
Products
CSCRIE products introduction
CSCRIE Membrane Bottom Filter Plates for Assays
Simplify complex filtration workflows using centrifugation for efficient sample processing.
Ideal for high-throughput workflows handling multiple samples.Incorporates a high-precision 0.45 µm membrane with proprietary processing technology.
The reinforced bottom structure (patented) enables a wide range of applications and improves efficiency in high-volume sample filtration.
| Item | High-Precision Membrane | Uniform Mesh |
|---|---|---|
| Structure | Membrane with micropores formed in a film | Woven mesh structure |
| Manufacturing Method | Track-etching process | Weaving / knitting process |
| Pore Shape | Uniform circular pores | Grid-like pores |
| Surface | Smooth and flat | Uneven surface |
| Fluid Permeability | Suitable for precise filtration | Focus on flow rate and air permeability |
| Key Features | “Precise separation”, “Uniform pore size” | “High strength”, “High permeability” |
Our technology streamlines your filtration workflows.

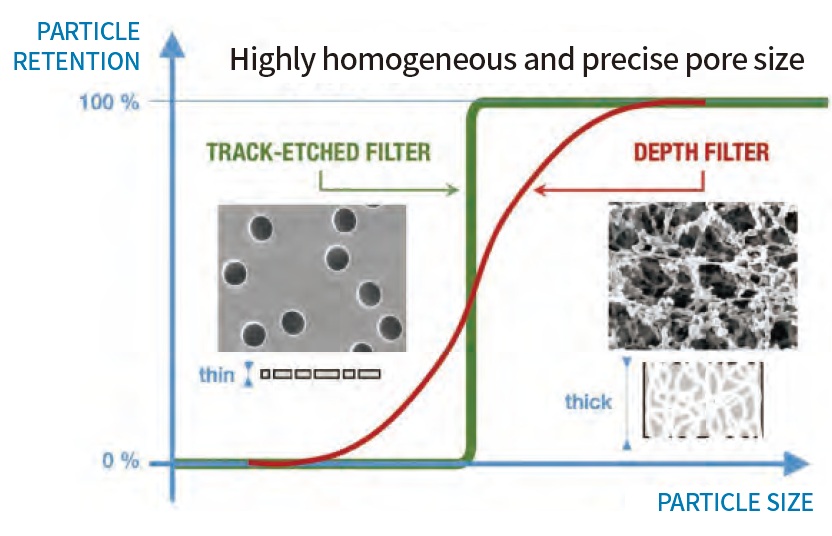

Enables uniform pore size through advanced track-etching technology.
Patented Technology
Patented Technology

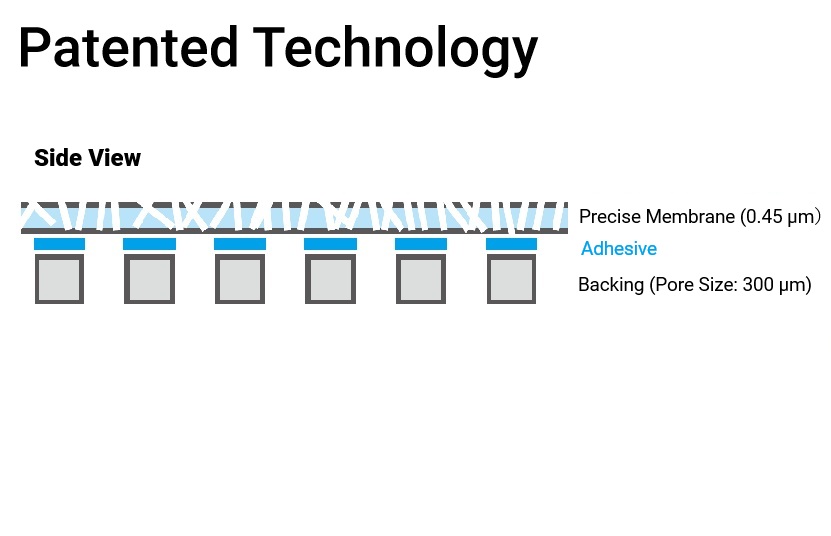

The membrane is reinforced by laminating an ultra-thin, high-precision membrane with a laser-processed support structure.
How to Use the Filtration Plates (Centrifugation Method)

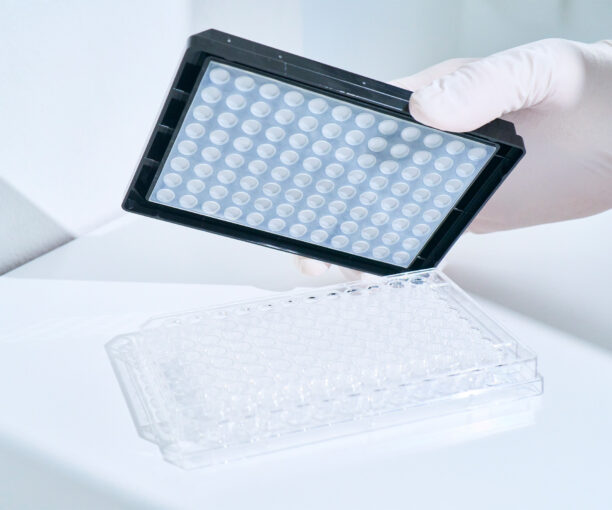

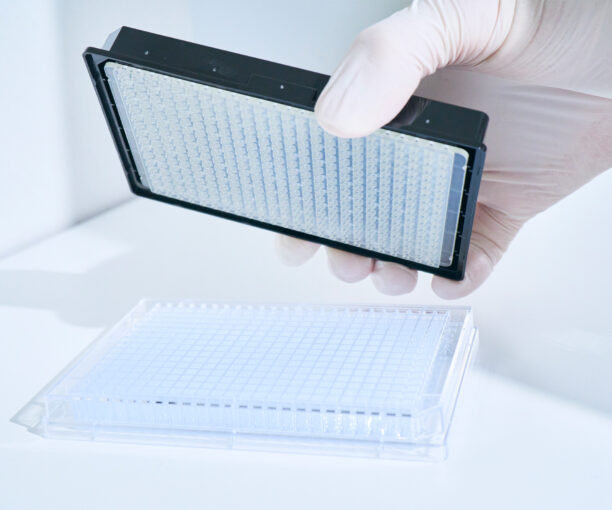

(1) Stack the centrifugal filtration plate onto a new microplate.
(2) Apply samples to all wells by using pipettes

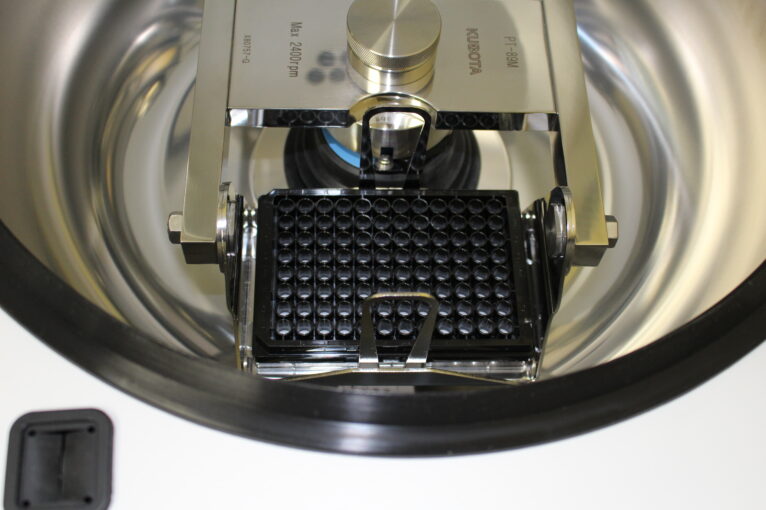

(3) Filtration with centrifuge *Recommended: 300g x 30 seconds
Video
This video demonstrates how to use the CSCRIE filtration plate for centrifugation-based sample filtration.
Ordering information
| Product name | CSCRIE Centrifugal Filtration Plate, membrane bottom, 0.45 µm |
|---|---|

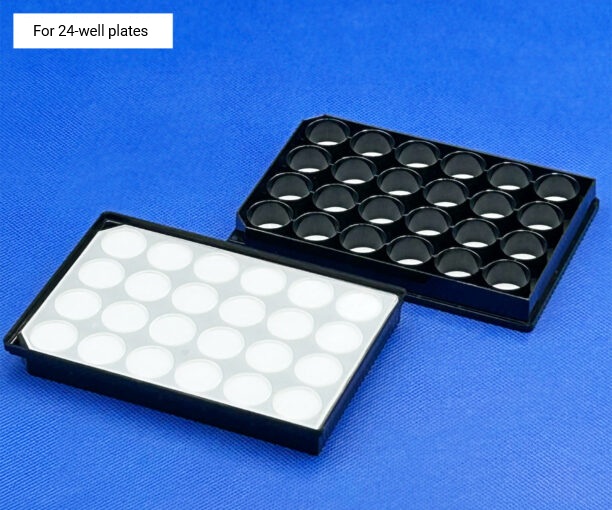

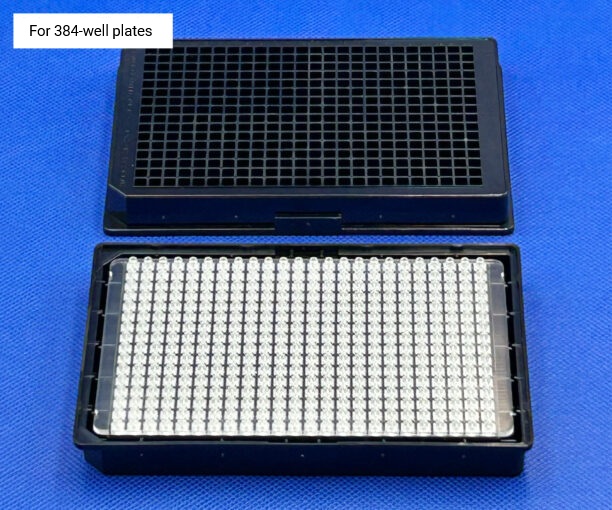

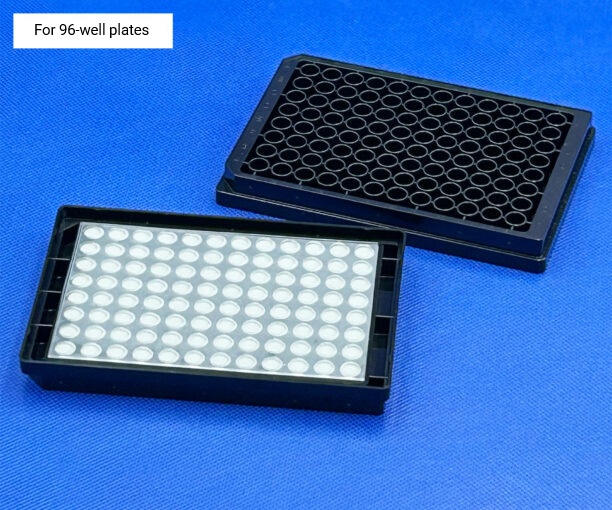

| Standard | Compatible with 24-well, 96-well or 384-well plates |
| Materials | Plate: Polystyrene Membrane: Polyester Adhesive: Silicone |
| Product Code | Description | Q’ty | Price |
| R-CSC0812-01 | CSCRIE Centrifugal Filtration Plate, 24-well, membrane bottom, 0.45 µm | 1 plate | Contact us |
| R-CSC0812-02 | CSCRIE Centrifugal Filtration Plate, 24-well, membrane bottom, 0.45 µm | 5 plates |
| Product Code | Description | Q’ty | Price |
| R-CSC081-01 | CSCRIE Centrifugal Filtration Plate, 96-well, membrane bottom, 0.45 µm | 1 plate | Contact us |
| R-CSC081-02 | CSCRIE Centrifugal Filtration Plate, 96-well, membrane bottom, 0.45 µm | 5 plates |
| Product Code | Description | Q’ty | Price |
| R-CSC0813-01 | CSCRIE Centrifugal Filtration Plate, 384-well, membrane bottom, 0.45 µm | 1 plate | Contact us |
| R-CSC0813-02 | CSCRIE Centrifugal Filtration Plate, 384-well, membrane bottom, 0.45 µm | 5 plates |
Frequently Asked Questions (FAQ)Below are frequently asked questions from researchers considering the CSCRIE Membrane Bottom Filter Plates.
Q. What plates is this compatible with?
A. It is compatible with a standard 24-well, 96-well or 384-well plates.
Q. What pore sizes are available for the CSCRIE Membrane Bottom Filter Plates?
A. 0.45 μm is available as off-the-shelf products.
Custom pore size is also available, feel free to contact us.
Q. What centrifugation condition is recommended for the Membrane Bottom Filter Plates?
A. Try 300 g x 30 seconds first, but please optimize the condition according to your experiments.
Q. How does it help reduce cross-contamination?
A. A contamination-preventive silicone sheet (patented technology) securely fixes both plates.
Q. Is it possible to request custom pore sizes for the Membrane Bottom Filter Plates?
A. Yes. Customization is available. Contact us.
Q. How do I get pricing and place an order?
A. Please contact us for a quote. Credit card payment is available.
Flyer
Contact us for Customized Filtration Plate!
Our extensive knowledge and expertise enable us to make customized filtration microplate with the pore size range from 0.01 to 300 μm.
Please feel free to contact us!
