CS Mouse Wound Splint

Murine model is widely used for a wound healing and repair test.

During this test, circle type of splint made of silicone are used to keep the wound opening and that enable to observe the healing process of wounds.

In general, cyanoacrylate adhesive (glue) is used to fix the splint temporarily. However, these adhesive sometimes go into suture holes, that makes it difficult to anchor the splint.



Our mouse wound splint has an adhesive tape on the side in contact with the skin. Therefore, any adhesives or glues are not required in affixing the splint and make anchoring process smooth compared to conventional splints.



This product is for research purposes only.

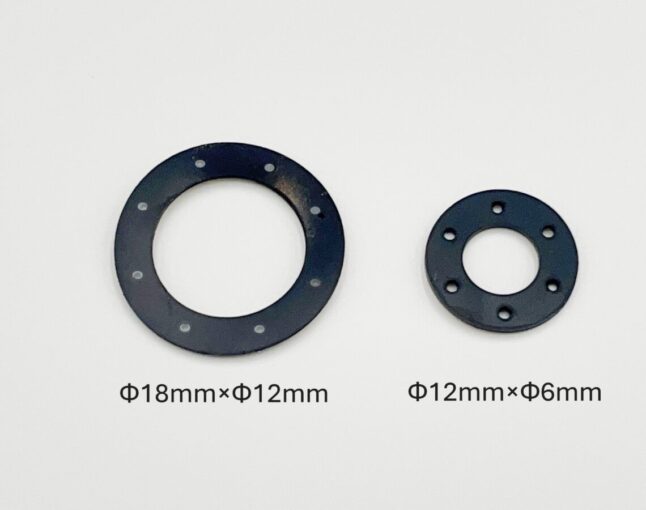

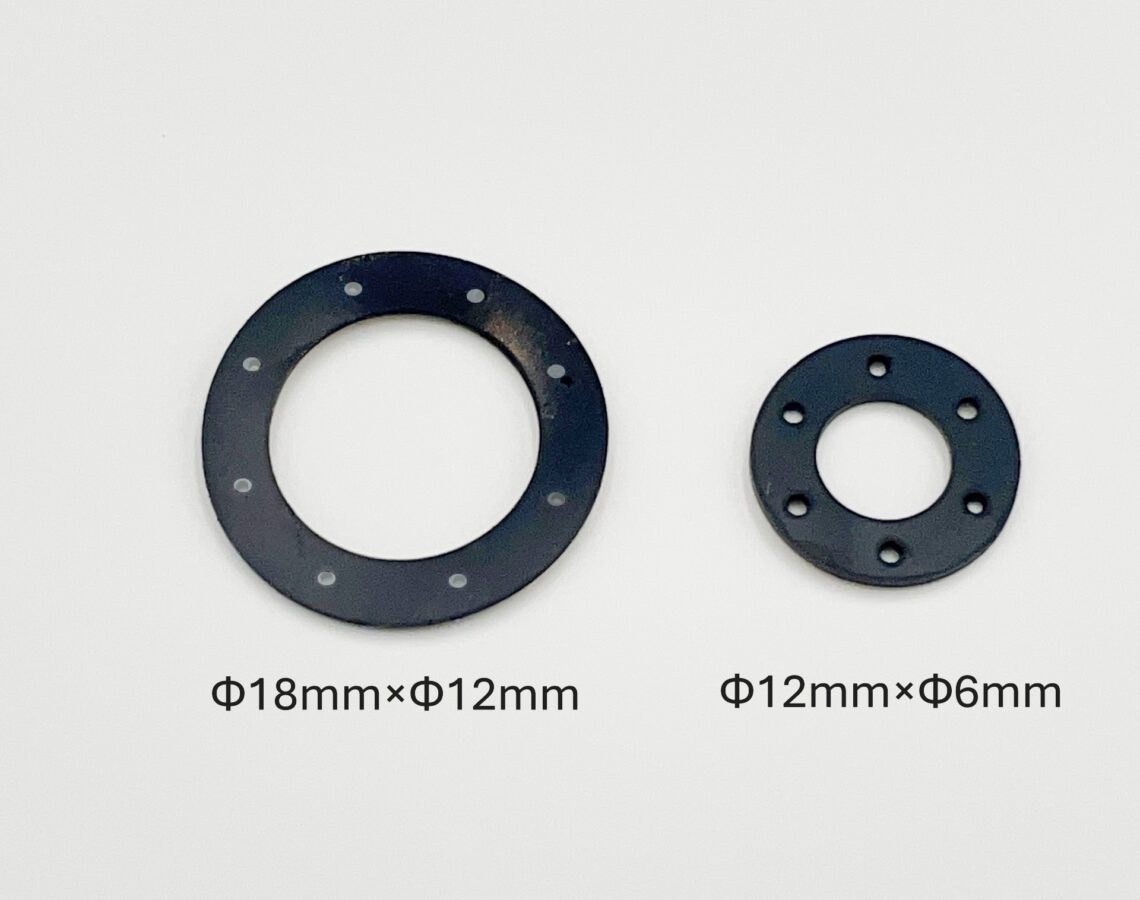

Appearance of the Mouse wound splint

Mouse, splint, wound, opening

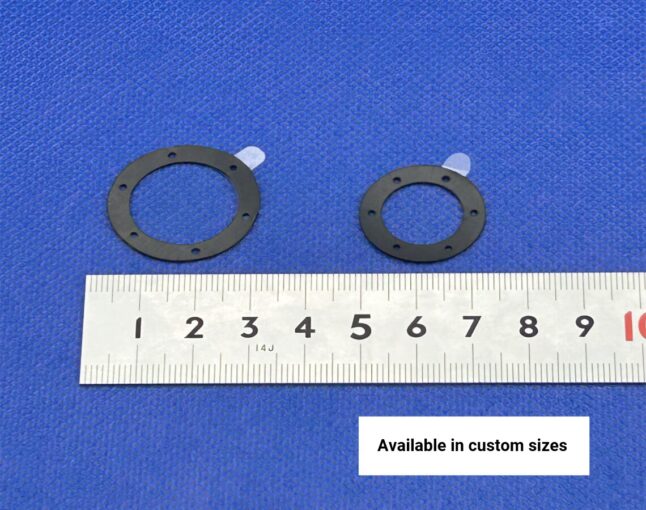

Outline of the CS Mouse Wound Splint

Mouse, splint, wound, opening

Outline of the CS Mouse Wound Splint on the mouse model

Features and Advantages of the CS Mouse wound splint

* Adhesive tape on the side in contact with the skin excludes the need of using further adhesives or glues for temporary affixing.

* Anchor the splint through the 6 holes with sutures.

* Avoid the repairing of opening wounds by contraction.

* Better following to the movement compared to silicon-made splint.

* Size : 12 mm (Outer diameter), 6 mm (inner diameter)

* Material : EPDM (with adhesive tape)

* Gamma sterilized

* Customization available (feel free to contact us)

* Quantity : 20 pieces (10 pieces / bag x 2)

Product Information

Product Code Description Size
R-CSC086-01 CS Mouse Wound Splint 20 pieces
