Products CSCRIE products introduction

CSCRIE 384-well filter plate (mesh type)

For High Throughput Sample Filtration from 384-well!The 384-well Filtration Mesh Plate is designed to support efficient filtration across a full 384-well format, enabling rapid processing of multiple samples while maintaining uniform performance across wells by using centrifuge.

Stop struggling with sample filtration from 384-well plates!

In high-throughput screening and sample preparation workflows, handling samples in 384-well plates often becomes a bottleneck.
The CSCRIE 384-well sample filtration plate was developed to address these challenges.

The CSCRIE 384-well sample filtration plate is a high-throughput mesh filter plate, designed for efficient filtration of various samples in standard 384-well microplates.

CSCRIE’s 384-well mesh filter plate completes multi-well filtration with a simple centrifugation step.
Patented technology with silicone backing layer firmly fixes the filtration plate with the reservoir plate, minimizing inter-well cross-contamination.
Ideal for removing cell clumps and debris, and preparation of single-cell before flow cytometry and a wide range of sample pretreatments—fast, consistent, and easy.

Why Use a 384-well Filtration Plate?

Sample filtration using 384-well mesh plate supports:

・Increased throughput without expanding laboratory footprint

・Reduced time consumption per sample for filtration

・Improved reproducibility

    Key Featrures of the 384-well Filtration Mesh PlateIdeal for high-throughput screening, compound handling, assays, and general sample pretreatment workflows using standard 384-well microplates.

    mesh, pore,

    Highly homogeneous mesh

    Highly homogeneous mesh is used, with pore size 30, 70 and 100 μm.

    384-well-plate, filtration plate, mesh plate

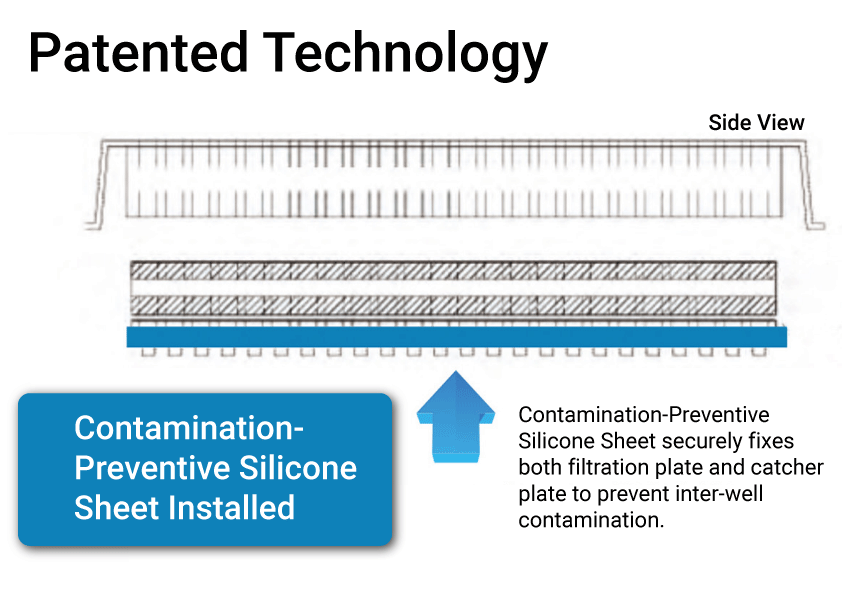

    Patented Technology

    In multi-well filtration, preventing cross-contamination between adjacent wells is critical for maintaining data quality and assay reliability, especially when processing large numbers of samples in parallel.
    Contamination-Preventive Silicone Sheet on the bottom securely fixes both filtration mesh plate and reservoir plate (compatible with standard 384-well plates) to prevent cross-contamination among wells.

    384-well, microplate, bottom

    "384-well" contamination prevention design

    How to Use the 384-well Filtration Plate (Centrifugation Method)

    384-well filtration mesh plate, 384-well mesh plate

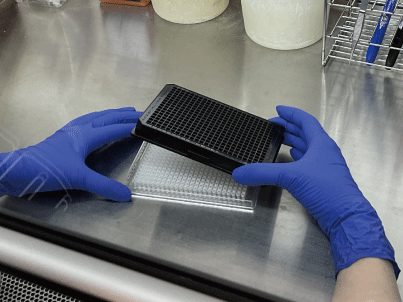

    (1) Stack our centrifugal filtration plate onto new microplate

    384-well filtration mesh plate, 384-well mesh plate

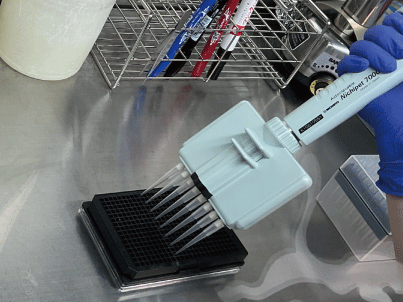

    (2) Apply samples to all wells by using pipettes

    384-well filtration mesh plate, 384-well mesh plate

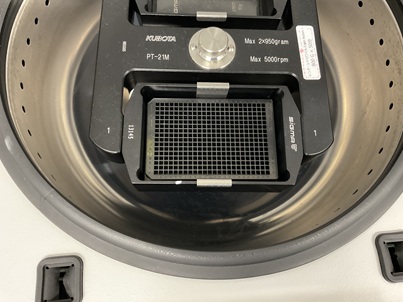

    (3) Filtration with centrifuge *Recommended: 300g x 30 seconds

    Learn it at the video!

    Comparison before and after filtration

    Before cell filtration

    single cell suspension, after filtration

    After cell filtration

    Product Information

    Bottom Mesh Filter Plate, Centrifuge, Centrifugation, sample filtration by centrifuge, cell strainer

    Product name CSCRIE Centrifugal Filtration Plate, 384-well
    Standard Compatible with 384-well plate
    Materials Plate : Polystyrene
    Mesh : Polyester fiber
    Adhesive : Silicone

    384 well type

    Product Code Description Q’ty Price
    R-CSC0783-02 CSCRIE Centrifugal Filtration Plate, 384 well, 30 µm 5 plates Contact us
    R-CSC0793-02 CSCRIE Centrifugal Filtration Plate, 384 well, 70 µm 5 plates
    R-CSC0803-02 CSCRIE Centrifugal Filtration Plate, 384 well, 100 µm 5 plates

    Payment by credit card is available. Get a quote today.

    Flyer

    Contact us for Customized Filtration Plate!

    Our extensive knowledge and expertise enable us to make customized filtration microplate with the pore size range from 0.01 to 300 μm.
    Please feel free to contact us!
