Unlock the ultimate clarity in sample observation!
From microorganisms and aquatic life to cells and emulsions, you can achieve high-definition imaging with ease.

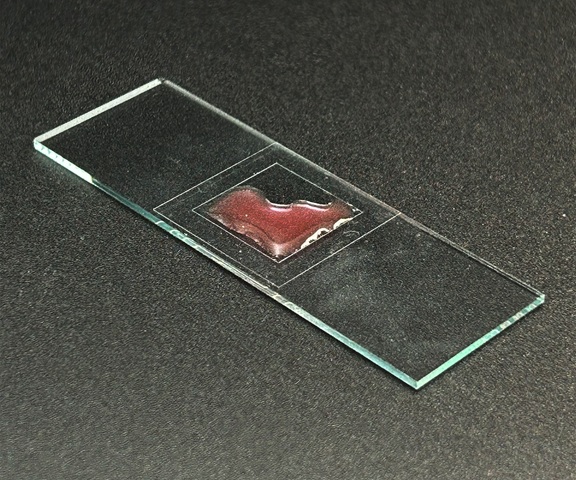

Simply seal with a cover glass over the aqueous mounting medium and this seal acts as a superior moisture barrier, ensures a secure seal of observing samples.
Products
CSCRIE products introduction

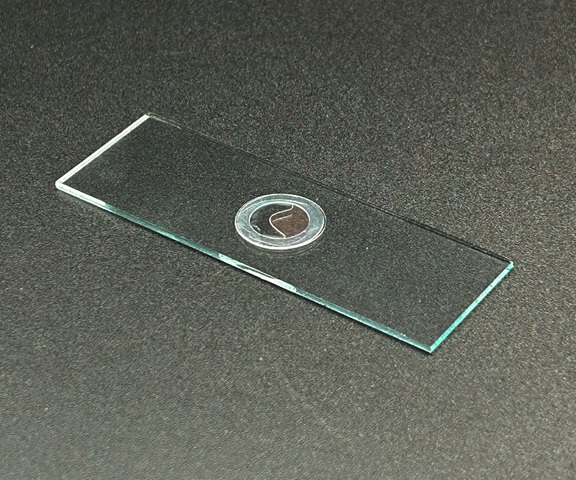

Chamber Seal for Microscope Slide
Chamber Seal for Microscope Slide
For the better observation
This product uses a strong, transparent adhesive with minimal leaching.

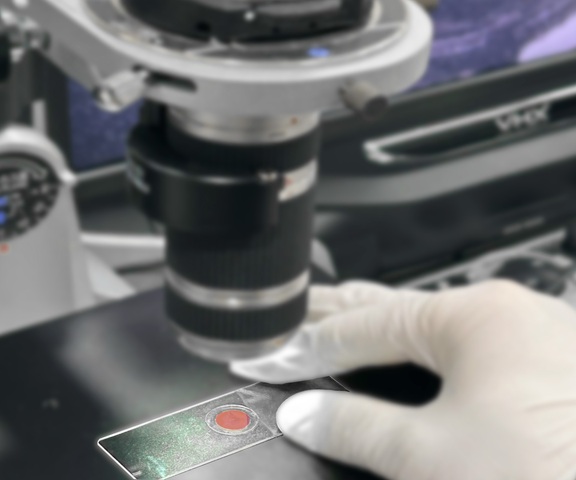

Its ultra-thin design makes it ideal for observing samples under microscopes with high-magnification.
Additionally, it allows you to secure the cover glass without applying paraffin or nail polish to the edges, improving experimental efficiency.
The material thickness can be selected from 50, 100 and 150 µm options, to match the sample and mounting medium making it suitable for observing a wide variety of samples.
Note: Depending on the type of mounting medium, the material of this seal may leach. Please evaluate before use.
Features of Chamber Seal for Microscope Slide
✓ Gamma-ray sterilized

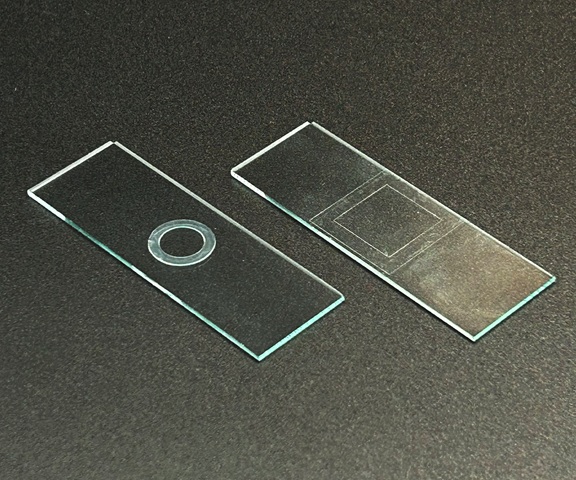

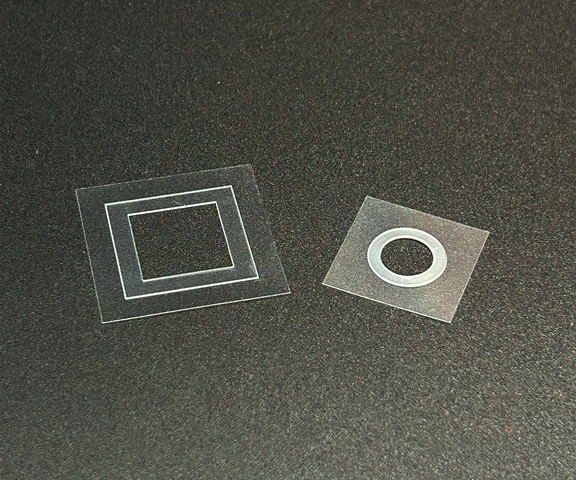

✓ Available in 3 formats – 2 Circles and 1 Quadrate
✓ Available in 3 thicknesses – 50 µm, 100 µm and 150 µm
✓ Gamma-ray sterilized
Product List
| Product Code | Product Size | Retention Volume | Quantity |
| R-CSC177-011 | I.D.Φ10 mm x O.D.Φ15 mm x Thickness 50 µm | 3.92 μL | 20 pieces |
| R-CSC177-012 | 100 pieces | ||
| R-CSC177-101 | I.D.Φ10 mm x O.D.Φ15 mm x Thickness 100 µm | 7.85 μL | 20 pieces |
| R-CSC177-102 | 100 pieces | ||
| R-CSC177-151 | I.D.Φ10 mm x O.D.Φ15 mm x Thickness 150 µm | 11.78 μL | 20 pieces |
| R-CSC177-152 | 100 pieces | ||
| R-CSC178-011 | Inside 17 x 17 mm：Outside 25 x 25 mm Thickness 50 µm | 14.45 μL | 20 pieces |
| R-CSC178-012 | 100 pieces | ||
| R-CSC178-101 | Inside 17 x 17 mm：Outside 25 x 25 mm Thickness 100 µm | 28.9 μL |
20 pieces |
| R-CSC178-102 | 100 pieces | ||
| R-CSC178-151 | Inside 17 x 17 mm：Outside25 x 25 mm Thickness 150 µm | 43.35 μL |
20 pieces |
| R-CSC178-152 | 100 pieces | ||
| R-CSC179-011 | I.D.Φ15 mm x O.D.Φ22 mm x Thickness 50 µm | 8.84 μL |
20 pieces |
| R-CSC179-012 | 100 pieces | ||
| R-CSC179-101 | I.D.Φ15 mm x O.D.Φ22 mm x Thickness 100 µm | 17.67 μL | 20 pieces |
| R-CSC179-102 | 100 pieces | ||
| R-CSC179-151 | I.D.Φ15 mm x O.D.Φ22 mm x Thickness 150 µm | 26.5 μL | 20 pieces |
| R-CSC179-152 | 100 pieces |
Please contact us for pricing.
